Description:

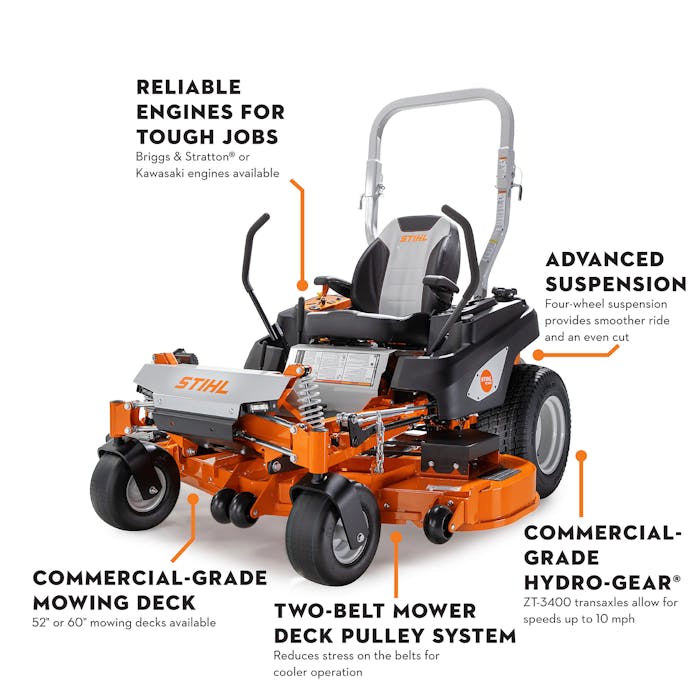

With an advanced suspension system and a commercial-grade 60” mowing deck, the STIHL RZ 560 K zero-turn mower is built for durability, operator comfort, and a long life span. The two-belt deck pulley system reduces stress on each belt to keep the 24 hp Kawasaki engine running cooler with less maintenance. The Hydro-Gear® ZT-3400 transaxles enable 10 mph forward ground speed and 5 mph in reverse, allowing for smooth and efficient cutting.
Features:
Made in America
- A majority of STIHL products sold in America are made in America of U.S. and global materials.
Commercial-grade Hydro-Gear® ZT-3400 Transaxles
- Hydro-Gear® ZT-3400 transaxles enable 10 mph forward ground speed and 5 mph in reverse, allowing for smooth and efficient cutting.
Swingarm rear suspension with shock absorbers
- The adjustable rear suspension with shock absorbers are designed to help provide performance and comfort while mowing uneven surfaces.
Deluxe seat with armrests
- Armrests designed to ensure a comfortable ride throughout the job.
Independent front suspension with mower deck height compensation
- Independent front suspension features two control arms that connect to shock absorbers, designed to ensure wheels remain
- perpendicular to the ground throughout the range of travel.
Two USB-A ports
- Two USB-A ports provide 3.15 amps of power to charge devices.
Greaseable Mower Deck Spindles
- Greaseable mower spindles allow for user maintenance and extend the life span of each spindle.
Trailer Hitch
- This zero-turn mower features a rear trailer hitch for towing additional accessories and attachments*.
- *Accessories and attachments sold separately.
Flexible side rubber discharge chute
- Chute allows grass clippings to be released to the side of the mower and out of the way of the cutting path.
Flip-up floor pan
- Flip-up floor provides convenient serviceability and cleaning of the mowing deck.
Large fuel capacity
- Provides fuel coverage for large jobs and features a large opening for easy fueling. Plus, the fuel gauge is visible from the operator seat to monitor fuel level.
Roll Over Protection System (ROPS)
- The advanced ROPS features polyurethane blocks to prevent rattling while in motion and conveniently folds for easy storage and trailer transport between jobs.
Dual-function hour meter
- Dual-function hour meter tracks both run time and hours of mowing time to assist users in keeping up with regular maintenance tasks.
Efficient Two-belt mower drive system
- Two-belt mower drive system results in less strain and flex on the belts, allowing the belts to run cooler and enabling a longer lifespan and less maintenance.
Integrated Cup Holders
- Cup holders conveniently keep drinks secure and within reach.
Foot-operated Cutting Height
- Users can easily adjust the cutting height while seated.
Specifications
- Horsepower: 24 hp
- Fuel System: Carbureted
- Fuel Tank Capacity: 5.5 gal
- Displacement: 726 cc
- Transaxles: Hydro-Gear® ZT-3400
- Forward Ground Speed: 10 mph
- Reverse Ground Speed: 5 mph
- Deck Width: 60 in
- Mowing Height Range: 1.5" - 5"
- Deck Construction: Fabricated 10-gauge steel with 3/8" reinforcement plates
- Cutting Height Options: 13
- Blades: 3 - MARBAIN® Hardened
- Front Tires: 13 x 6.5-6
- Rear Tires: 23 x 10.5-12
- Weight: 1,291 lbs
- Power Source: Gas
- Engine Governor: Kawasaki FT730V
- Spindle Shaft Diameter: 1 in
- Spindle Bearings: 2.5" x 1" Dual Ball Bearing
- USB Amperage: 3.15 A
- Front Suspension Travel: 2.05 in
- Rear Suspension Travel: 2.68 in
Width | Weight | Height | Length |
---|---|---|---|
0 Inch | 1291 Pounds | 0 Inch | 0 Inch |
