Description:

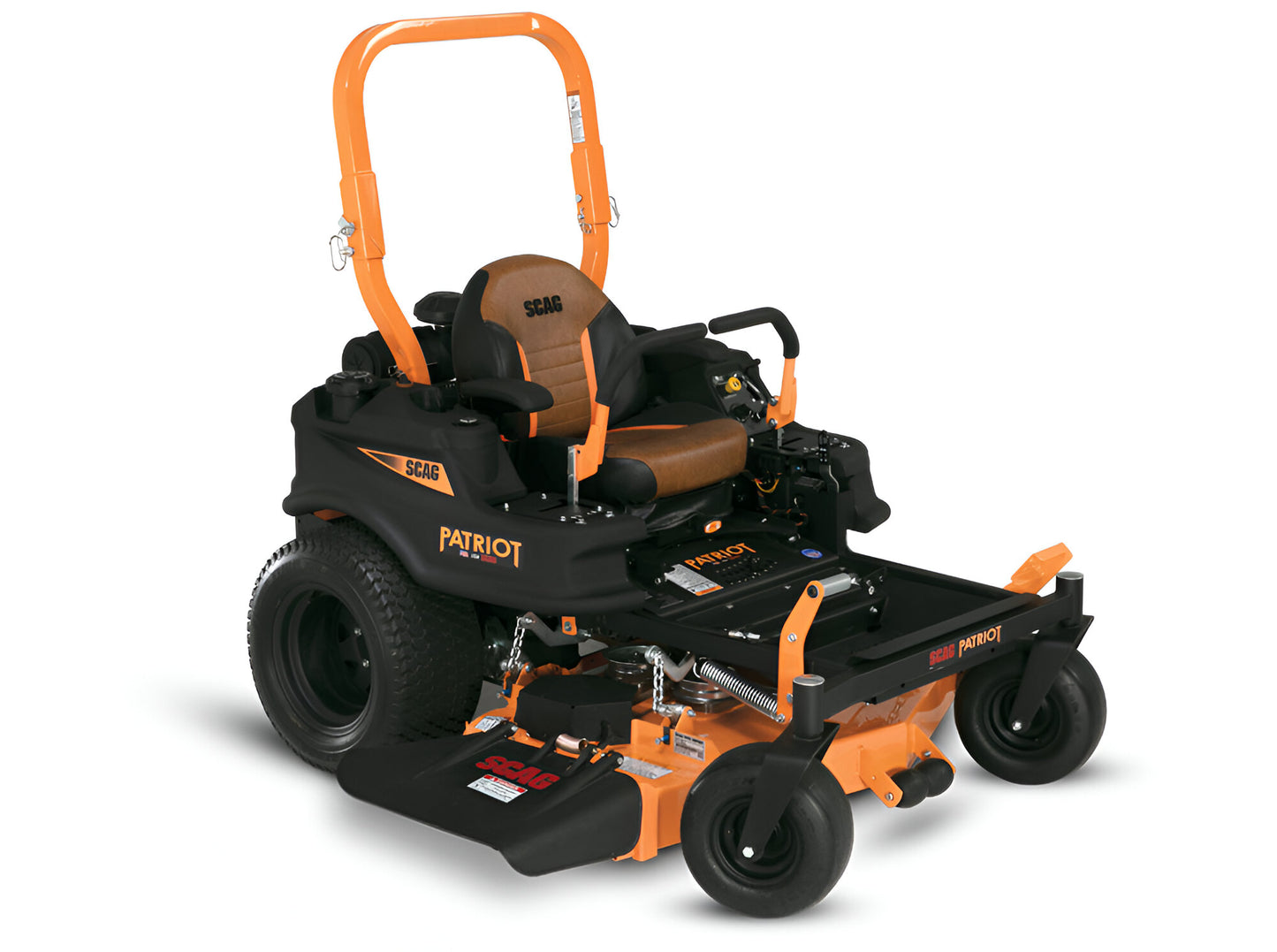

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.
Features:
SOLID, FORGED ROTOR:
A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
HIGH-TEMPERATURE, LONG-LIFE GREASE:
All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
ADJUSTABLE AIR GAP:
When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.
Specifications:
- General
- Total Fuel Capacity: 6.5 gallons
- Drive Tires: 22" x 10.5"-12" (52"), 24" x 12"-12" (61")
- Caster Tires: 13" x 6.5"-6"
- Seat and Suspension
- Seat: Torsion-spring suspension seat
- Drive System
- Drive System Type: Hydro-Gear ZT3100 Transaxle (52"), Hydro-Gear ZT3400 Transaxle (61")
- Pumps: ZT3100 Internal Pump (10 cc), ZT3400 Internal Pump (12 cc)
- Motors: Internal Motor (16 cc)
- Performance
- Forward Ground Speed: 8.5 mph (52"), 10 mph (61")
- Reverse Ground Speed: 5 mph
- Braking
- Parking Brake: Foot-operated pedal
- Deck
- Cutting Widths: 52", 61"
- Type: Hero Cutter Deck
- Cutting Height: 1.5"-5" in .25" increments
- Deck Lift: Foot-operated pedal
- Construction
- Deck Construction: Dual-plate cutter deck with 2 steel plates, reinforcement plate at spindles
- Spindles: Aluminum housing with sealed ball bearings
- Blade Engagement
- Blade Engagement: Ogura GT2 (108 ft lb)
- Adjustable air-gap for extended life
Width | Weight | Height | Length |
---|---|---|---|
73 Inch | 911 Pounds | 0 Inch | 0 Inch |
