Description:

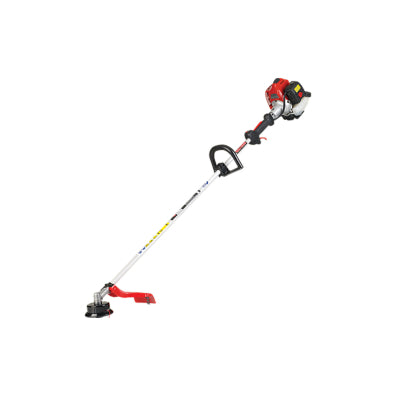

The core of the Red Max commercial trimmer line-up. The BCZ260S is a powerful 0.96 kilowatt trimmer that only weighs 5 kilograms. The Strato-Charged engine provides up to 20% better fuel economy while increasing torque over a wider RPM range. The steel drive shaft will hold up to the most demanding conditions the commercial landscaper needs to overcome.

SPECIFICATIONS

MODELBCZ260SDisplacement (cc)25.4Power Output (kw)0.96Dry Weight (kg)5Drive ShaftSolid SteelHandle TypeLoop HandleWarranty – Commercial/Domestic2 Year/5 Year

* Continuous dedication to improve products requires that specifications and designs are subject to change without notice. All product images shown are for illustration purposes only. All images may not represent the model shown.

Features for the Red Max BCZ260S

The core of the Red Max commercial trimmer line-up. The BCZ260S is a powerful 1.27 horsepower trimmer that only weighs 10.8 pounds. The Strato-Charged engine provides up to 20% better fuel economy while increasing torque over a wider RPM range. The steel drive shaft will hold up to the most demanding conditions the commercial landscaper needs to overcome.

Specifications

Dimensions

Weight (excl. cutting equipment): 10.8 lbs.

Emissions

Exhaust emissions (CO average): 354.3 g/kWh

Engine

Cylinder displacement: 25.4 cm³

Power output: 1.27 hp

Fuel tank volume: 22.32 fl oz

Fuel consumption: 450 g/kWh

Idling speed: 3000 rpm

Spark plug: NGK BPMR8Y

Electrode gap: 0.03 in

Torque, max. at rpm: 7000 rpm

Torque, max.: 1.24 Nm

Clutch engagement speed (±120): 4000 rpm

Maximum rpm output shaft: 8208 rpm

Gear

Gear ratio: 1.462

Drive gear angle: 60 °
