DESCRIPTION

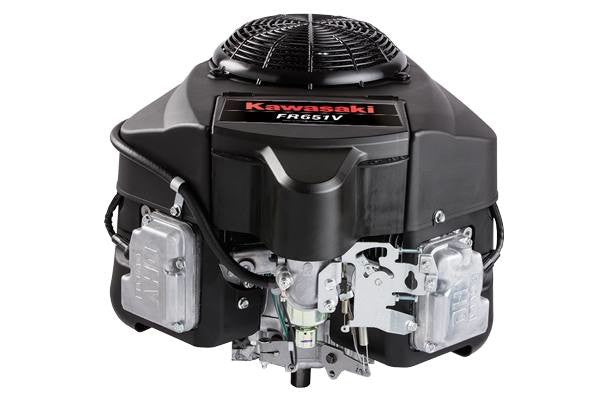

The FR651V engine gives a commercial-grade performance in your home mower. Smooth and efficient, this V-twin 4-cycle vertical shaft engine brings capable power you can rely on.

FEATURES

Overhead V-valve 90° V-twin Pressurized lubrication system Electronic spark ignition Automatic compression release Internally vented carburetor with fuel shut-off solenoid Rotating metal grass chopper screen Cast-iron cylinder liners Single-stage air filter

SPECIFICATIONS

Displacement: 726 cc (44.3 cu. in.) Number of Cylinders: 2 Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm) Compression Ratio: 8.2:1 Oil capacity w/filter: 2.1 U.S. qt. (2.0 L) Maximum Power: 21.5 hp (16.0 kW) at 3,600 rpm Maximum Torque: 39.3 ft-lb. (53.2 N·m) at 2,200 rpm Dry Weight (without muffler): 88.2 lb. (40.0 kg)

ENGINE

Cylinders 2 Bore x Stroke 3.1 x 3.0 in. (78 x 76mm) Displacement 726 cc (44.3 cu. in.) Compression Ratio 8.2:1 Horsepower 21.5 hp (16.0 kW) at 3,600 rpm Torque 39.3 ft-lb. (53.2 N·m) at 2,200 rpm DIMENSIONS

Weight 88.2 lb. (40.0 kg)
