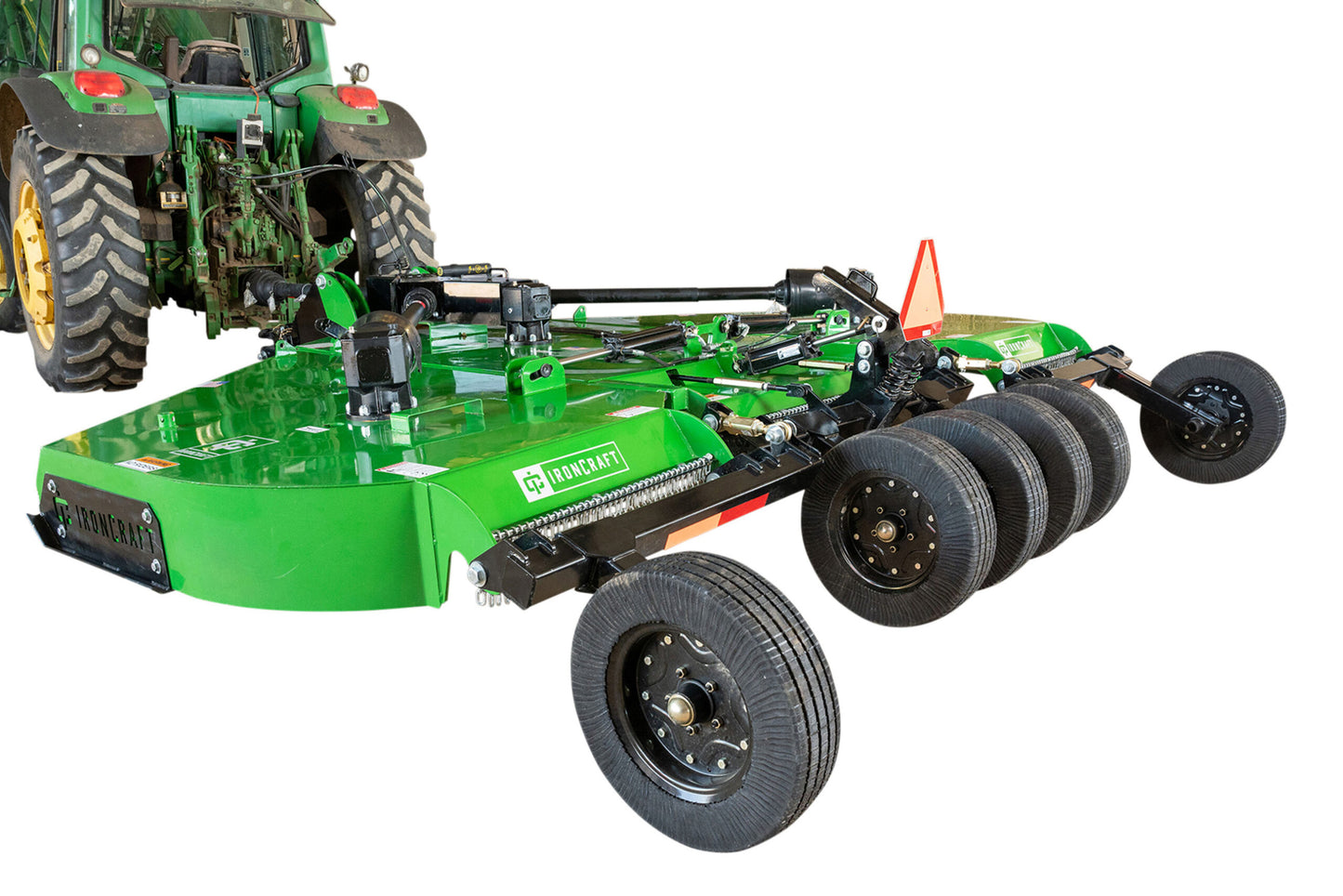

Ironcraft 3515 Series 60 PTO HP Heavy-Duty 15' Flex-Wing Cutters

Ironcraft 3515 Series 60 PTO HP Heavy-Duty 15' Flex-Wing Cutters
Gravely
Call For Pricing

SKU:Ironcraft 3515 Series 60 PTO HP Heavy-Duty 15' Flex-Wing Cutters-3515

View Product details
product-img
Ironcraft 3515 Series 60 PTO HP Heavy-Duty 15' Flex-Wing Cutters
Regular price $22,471.00 USD
Regular price $22,471.00 USD Sale price $22,471.00 USD

Description:

The 3515 Cutter is ready to make quick work of your next project. It offers reinforced deck structure from front to rear and side to side of the center deck weldment. ¼” inch wall tubing along the length of the hinges for extra hinge protection. Wing fold hydraulic cylinder mount spans the entire width of the center deck weldment and ties into the cutter deck lift cylinder to achieve maximum structural integrity. Deck rings standard on each deck to ensure bent blades do not damage the structure of the cutter.

Heavy 7 Gauge press formed blade pans. Our tooling designer used strategically placed lettering around the pan the reduce the ripple effect commonly seen on competitive models. This allows for greater rotational balance, better cut quality and greater gearbox longevity.

Specifications:

  • Product Family: 3515 Series
  • Product: 3515
  • Description: 15' Heavy Duty Flex Wing Rotary Cutter

Power and Performance

  • RPM: 540 or 1000
  • HP Required: 60 minimum PTO
  • Cutting Capacity: 3-1/2 inches
  • Driveline Protection: Slip Clutch

Dimensions

  • Working Width: 180" (15 feet)
  • Overall Width: 188"
  • Transport Width: 90"
  • Weight: 5600 lbs (with 6 x 26" laminated tires)
  • Tongue Weight: 1900 lbs

Cutting Features

  • Cutting Height: 2" to 15"
  • Deck Thickness: 10 gauge
  • Side Bands: 1/4" x 13-1/2"
  • Blade Dimensions: 1/2" x 4" Uplift blades
  • Blade Overlap: 6"
  • Blade Holder: Round pan

Gearbox

  • Gearbox Rating: 235 HP
  • Outboard Gearbox Rating: 190 HP
  • Gearbox Warranty: 5-year limited warranty

Flexibility and Suspension

  • Wing Flex: 22 degrees down to 100 degrees up
  • Suspension: 2 heavy-duty springs positioned on the center tailwheel axle

PTO and Drive

  • PTO Drive Shaft: ASAE CAT 6
  • Wing Drive PTO: ASAE CAT 4

Additional Features

  • Skid Shoes: Replaceable
  • Wheel Type Options: 20" or 26" laminated, 26" foam-filled, or 29" pneumatic
  • Hitch Type: Swivel pivot self-leveling
  • Deck Rings: Standard
  • Safety Tow Chain: Standard
  • Guarding Options: Single-row chains (standard)
  • FPM (Feet per Minute): 17,135
