Description:

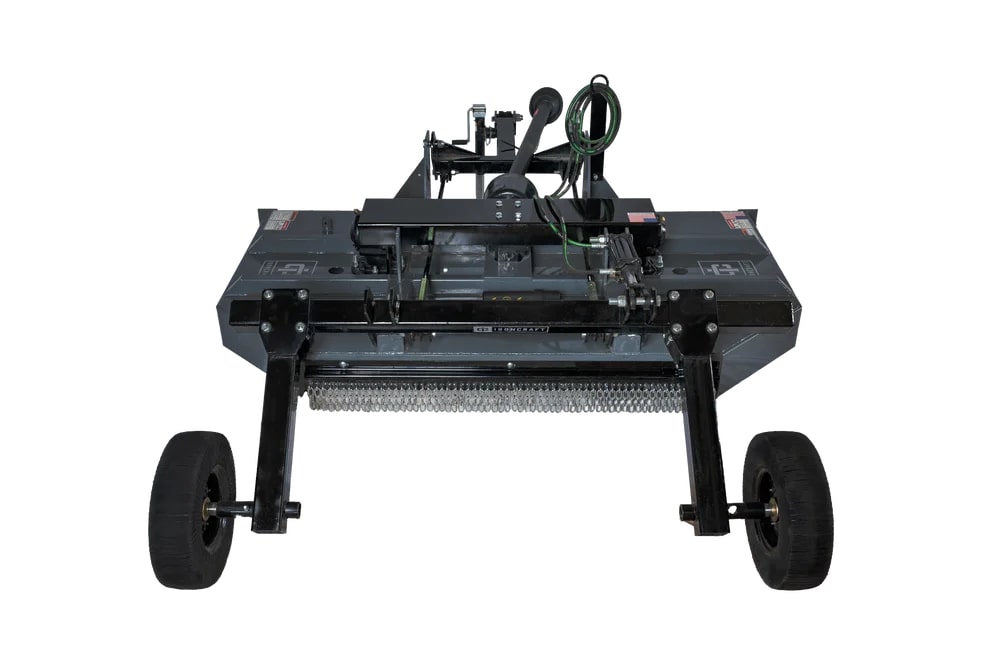

These Heavy-Duty Dual Spindle Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with 42 or 52 minimum hp tractors, and are available in 94” and 117” widths. The cutter uses dual spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. A slip clutch and dual shock couplers protect the gearboxes and drivelines from damage.

Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields are available. Available in lift-type and pull-type models.

Specifications:

Performance Specifications

• RPM: 540 or 1000
• HP Required: Minimum 42 PTO horsepower
• Working Width: 96"
• Transport Width: 98"
• Weight: 1250 lbs

Cutting Specifications

• Cutting Height: 3-1/2" to 10"
• Cutting Capacity: 3"
• Deck Thickness: 10 GA
• Side Bands: 8"
• Skid Shoes: Replaceable

Drive and Gearbox

• PTO Drive Shaft: Series 5 with slip clutch
• Center Driveshaft: Shock coupler protected
• Blade Holder: 1/2" plate
• Gearbox Rating: 125 HP
• Outboard Gearbox Rating: 100 HP
• Blades: 1/2" x 3" uplift

Wheel and Hitch Specifications

• Wheel Type: Laminated
• Hub Type: Bearing
• Hitch Type: Lift or Pull
• Hitch Compatibility: Cat 1 & 2

Warranty and Guarding

• Gearbox Warranty: 5-year limited
• Guarding Options: Chains

Cutting Performance

• Cutting Tip Speed: 17,100 FPM
