Honda

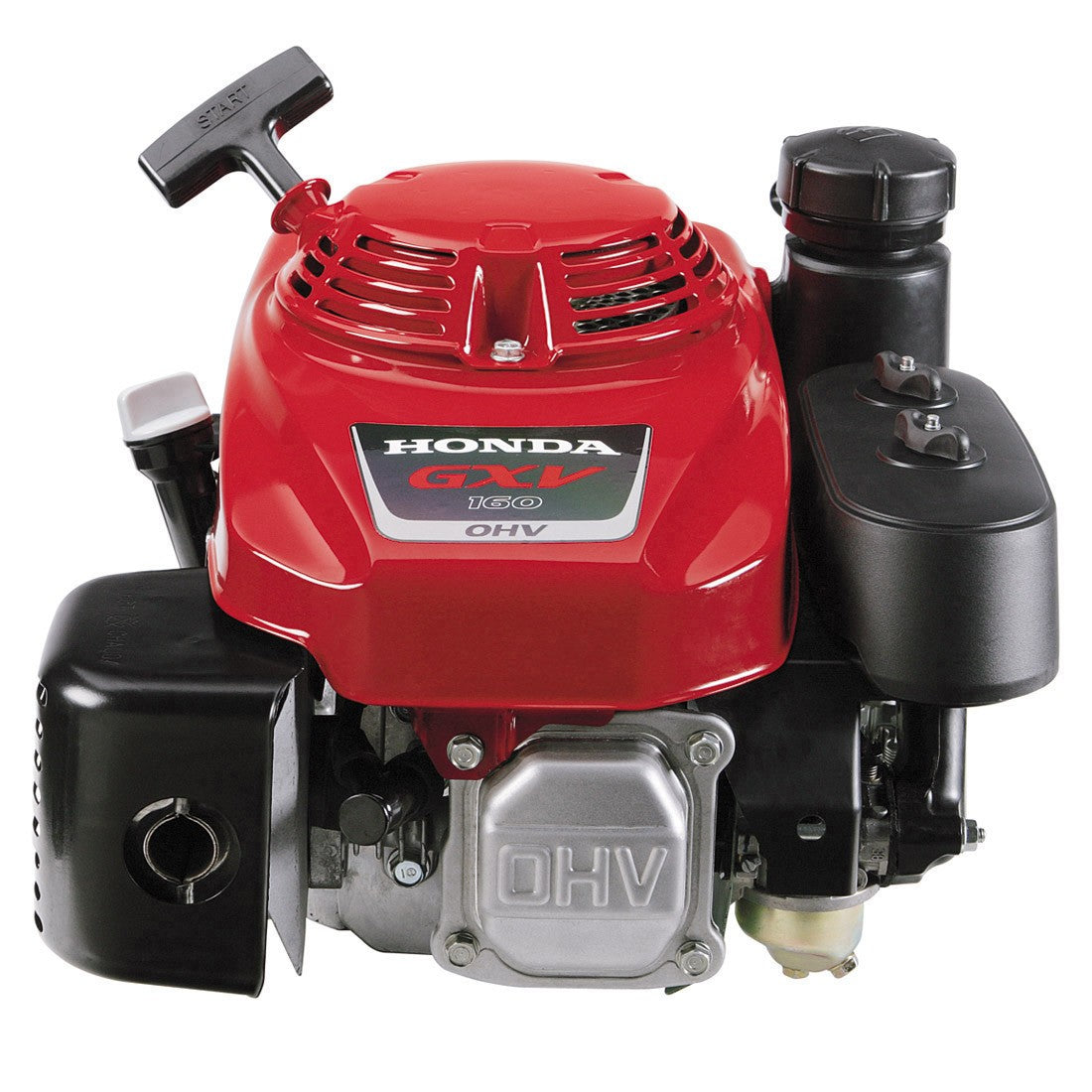

Honda GXV160H2

Honda GXV160H2
Gravely
Call For Pricing

SKU:GXV160H2-GXV160H2

View Product details
product-img
Honda GXV160H2
Regular price $449.00 USD
Regular price $449.00 USD Sale price $449.00 USD

Description:

The Honda GXV160H2 is a reliable and durable 4-stroke, overhead valve (OHV) petrol engine designed for a variety of commercial and residential applications. Known for its high efficiency and long service life, the GXV160H2 is commonly used in lawn mowers, pressure washers, and other industrial equipment. Here are the key features and specifications:

Key Features

  1. 4-Stroke OHV Design:
  • Ensures high efficiency and reliable power delivery.
  • Offers better fuel economy and lower emissions compared to older engine designs.
  1. Durable Construction:
  • The engine features a cast iron cylinder sleeve for improved durability and longer service life.
  • Heavy-duty recoil starter provides easy starting and long-term reliability.
  1. Performance and Efficiency:
  • The GXV160H2 is designed to provide consistent power and torque, making it suitable for demanding applications.
  • Precision engineered components result in reduced vibration and noise.
  1. Ease of Maintenance:
  • Simple oil drain and fill, and accessible spark plug location.
  • Large fuel tank capacity reduces the frequency of refueling.
  1. Advanced Ignition System:
  • Digital CDI ignition system ensures easy starting and optimal engine performance.

Specifications

  • Engine Type:
  • 4-stroke, single-cylinder, OHV, air-cooled
  • Displacement:
  • 163 cm³
  • Bore x Stroke:
  • 68 mm x 45 mm
  • Compression Ratio:
  • 8.5:1
  • Net Power Output:
  • 4.3 kW (5.8 HP) @ 3,600 rpm
  • Net Torque:
  • 10.3 Nm (7.6 lb-ft) @ 2,500 rpm
  • PTO Shaft Rotation:
  • Counterclockwise (from PTO shaft side)
  • Fuel Consumption:
  • Approximately 1.4 L/h @ 3,600 rpm
  • Fuel Tank Capacity:
  • 3.1 liters
  • Engine Oil Capacity:
  • 0.65 liters
  • Dimensions (L x W x H):
  • 336 mm x 376 mm x 335 mm
  • Dry Weight:
  • 15.1 kg (33.3 lbs)
  • Ignition System:
  • Transistorized magneto
  • Air Cleaner:
  • Dual element
  • Starting System:
  • Recoil starter
  • Applications:
  • Ideal for commercial turf equipment, tillers, agricultural equipment, construction equipment, and general-purpose applications where high reliability and power are required.

Width Weight Height Length
16.3 Inch 32 Pounds 13.9 Inch 0 Inch
