Description:

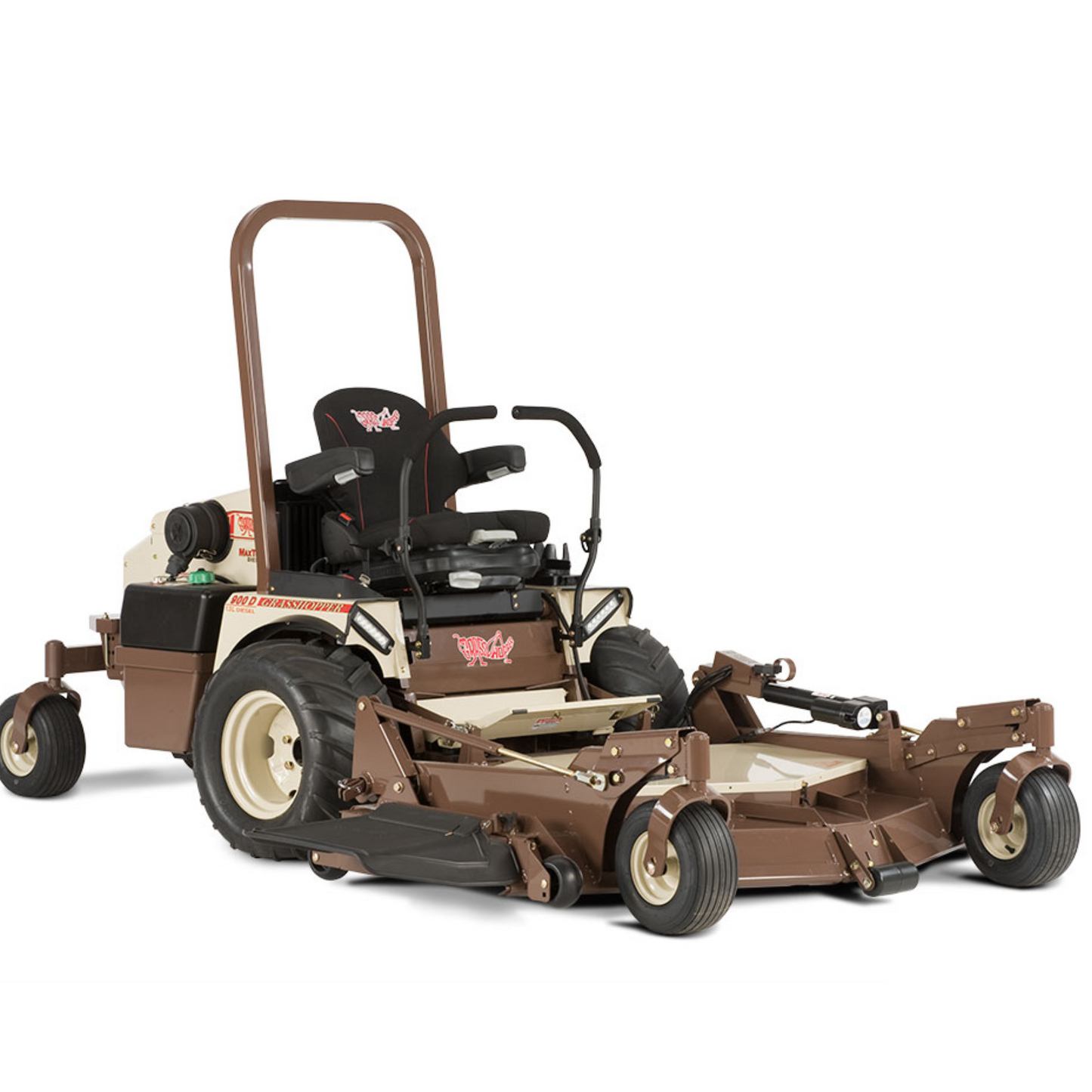

The Grasshopper zero-turn 900D 1.3L riding lawn mower provides more power, durability and maneuverability than any mower in its class. This mower is equipped with a fuel-efficient MaxTorque™ Clean Diesel Tier 4 Final-compliant engine that burns less fuel per hour than gasoline or propane mowers. The 900D 1.3L saves landscape contractors time by powering through heavy grass at faster mowing speeds while still delivering a manicured cut thanks to the higher torque output of the diesel engine. Replace the front-mounted deck with a wide choice of grounds maintenance implements for year-round productivity. Use PowerFold® deck lift/electric height adjustment to rotate the deck up for easy cleaning and to fit more mowers on a trailer.
Features:
QuikConverter™ Implement Capability:
- Add or remove implements in minutes without tools, facilitating quick transitions between tasks.
- Equipped with a wide range of tools for turf cleanup, renovation, and snow removal, enhancing productivity year-round.
Minimal Maintenance:
- Fewer than 10 grease points and easy top-side access to belts and filters.
- 1,000-hour transmission fluid change intervals.
- Self-tensioning belts minimize cost and labor on routine maintenance.
PowerFold® Electric Deck Lift:
- Zero-turn mower industry's first electric deck lift, introduced in 2004.
- Rotates the deck nearly 90 degrees for easy access to the underside, simplifying maintenance and mulching package installation.
- Adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.
Vigilant Operator Presence System™:
- Standard low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt.
- Dampened steering levers return to neutral from forward and reverse.
- Interlock switches shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position.
Electronic Fuel Gauge/Digital Hour Meter:
- Conveniently displays fuel levels and hours of operation for easy monitoring.
Kubota Diesel Engine:
- EPA Tier 4 Final-compliant 77 cu. in. (1.3L) 3-cylinder, liquid-cooled Kubota Clean Diesel engine for smooth, reliable operation.
- Horizontal crankshaft and pressure lube system enhance performance and longevity.
Design-Matched G3 Transmission:
- Rugged G3 hydrostatic transmission with auxiliary cooling fans for efficient power transfer.
- HydroGear variable displacement pumps and high-torque Parker wheel motors provide smooth response and require less maintenance.
Wide Stance Single-Fork Tail Wheels:
- Increased flotation and stability for a smoother ride.
Hydraulic Lift:
- Raises the front of the deck to maneuver over soft or uneven ground and clear obstacles.
Built for Long Life:
- Robotically-welded, high-grade steel construction with I-beam reinforcement for durability.
- Tough powder-coated finish for chip and rust resistance.
LED Work Lights:
- Provide improved visibility in low light situations.
USB Ports:
- Two USB Charging Ports for added convenience.
Warranty:
- Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
- Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
High Temperature Clutch Cut Out:
- Automatically disengages the PTO to prevent engine damage if temperature reaches a certain point
Ultimate Operator Station™:
- Deluxe Premium Comfort Seat with coil-spring suspension and padded lumbar support
- Iso-mounting for vibration reduction
- Ergonomic controls for visibility and ease of reach
- One- or two-handed operation with QuikAjust Tilt™ dual levers
Premier Suspension Seat:
- Ultimate in operator comfort with adjustable features
Specification:
ENGINE:
- Type/Horsepower/Cylinders: Kubota MaxTorque™, 3-cylinder diesel engine
- Displacement: 77 cu. in. (1.3L)
- Lubrication System: Pressure Lube/Filter
- Crankshaft: Horizontal
- Cooling System: Liquid
- Fuel: Diesel - No. 2
- Fuel Capacity: 8 U.S. Gal (30.28 l)
- Air Cleaner: Heavy-duty, remote-mounted, cyclonic, dual-element air filtration
- Muffler: Ultra-quiet, single, industrial type
DURAMAX® DECKS:
- DECK: DuraMax
- Mulching Package: Available for 61" and 72" decks
- DURAMAX® DECK SIZE:
- 61" Deck
- 72" Deck
- CUTTING HEIGHT RANGE: 1.0 to 5.0 in. (2.5 to 12.7 cm)
- CONSTRUCTION: Robotic-welded steel with tubular 2.25 in. x 4 in. boxed members and 0.25 in. gussets. Features triple-strength upper deck and reinforced spindle plane.
- BLADES: Tempered, alloy steel blades
- SPINDLE ASSEMBLIES: Sentry™ Spindle System with double bearings greasable from the top of the deck
- SPINDLE HOUSINGS: 8 in. (20.3 cm) diameter machined aluminum housing with a 6-bolt pattern
- BLADE DRIVE: Maintenance-free gearbox with single Kevlar V-belt and idler arm tensioning
- TRIMABILITY: 6.25 in. (15.9 cm) for 61" Deck, 12.25 in. (31.1 cm) for 72" Deck
STARTER & ELECTRICAL SYSTEM:
- Battery: 12 Volt maintenance-free
- Starter: Solenoid shift
- Ignition: Breakerless, diesel quick heat glow plug
ULTIMATE OPERATOR STATION:
- Seat: Iso-mounted Premium Comfort Seat with coil-spring suspension and padded armrests
- Suspension: InFrame™ suspension
- Console-mounted Instruments: Includes various warning lights, gauges, electronic fuel gauge/hour meter, two USB charging ports, ignition, work lights, glow plug, and push/pull PTO switches
- Work Lights: Standard LED lights
- Hour Meter: Standard
TRANSMISSION & STEERING:
- Type: Rugged G3 hydrostatic system with auxiliary cooling fans
- Filtration/Hydro Fluid: Integrated, replaceable, high-efficiency, fine-particle filter with Grasshopper CoolTemp Hydro-Max™ fluid
- Speed: 0 - 11.0 mph (0 - 17.7 kph) forward, 0 - 6.0 mph (0 - 9.7 kph) reverse
- Turning Radius: True zero degrees
- Steering: One- or two-hand operation with adjustable, HydraSmooth™, dual levers
BRAKES & ATTACHMENT DRIVE:
- Brakes: Dynamic braking through hydrostatic transmission, disc parking brakes
- Attachment Drive: Telescoping PTO shaft with Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake
TIRE SIZES:
- Drive Wheels - Standard: 24x12.00x12 bar tread, high flotation, 4-ply rated
- Drive Wheels – Optional: 24 x 12.00-12, turf tread, 4-ply rated or 24 x 12-12 Michelin® X® Tweel® airless turf tread
- Deck Tires: 11x4.00x5 (flat proof), 4-ply rated for 61" Deck and 13x6.50x6 rib tread, pneumatic, 4-ply rated for 72" Deck
DIMENSIONS & WEIGHT:
- Height (Seat Back): 47.0 in. (119.4 cm)
- Height (Seat Cushion): 31.5 in. (80.0 cm)
- Height (ROPS): 69.5 in. (176.5 cm)
- Length: Varies with deck size
- Deck Width: Varies with deck size
- Weight: 1595 lbs. (725.5 kg) for 61" Deck, 1695 lbs. (768.8 kg) for 72" Deck
