Kioti

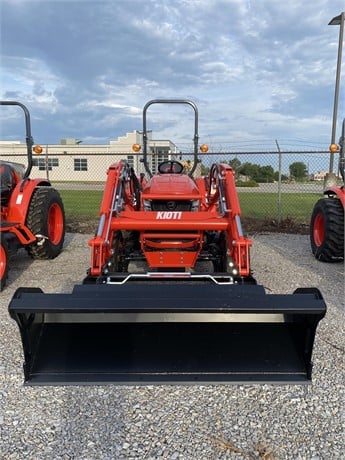

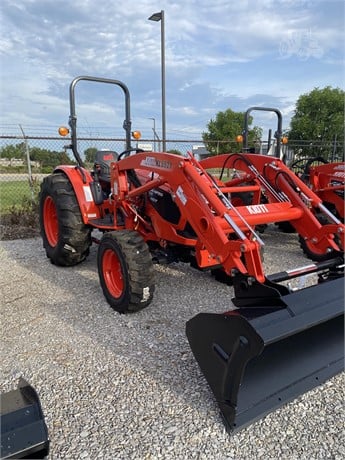

2023 KIOTI DK4720SEHB
SKU:KIOTI DK4720SEHB-DK4720SEHB
Description
The DK20SE Series Kioti tractors feature an open platform ROPS design, powerful HST transmission, dual HST pedals, and a Kioti diesel engine.
STANDARD OPTIONS:
- Power Steering
- Rear PTO
- Dual Remote Hydraulic Valve (Spring/Detent)
- Wet Multi Disc Brakes
- Joystick Valve
- Drawbar
- Headlights
- Parking Brake
- PTO Shield
ATTACHMENTS
Front End Loader (KL5521QA72)
The Kioti KL5521 front end loader is specifically designed for the DK10SE and DK20SE series tractors, providing efficient performance with single lever joystick control and a quick attach bucket. The loader is designed to be quickly attached and detached with its built in parking stand.
SPECIFICATIONS:
- Maximum Lift Height to Pivot Pin: 105.7 in
- Clearance w/ Bucket Level: 94.4 in
- Clearance w/ Bucket Dumped: 76.8 in
- Reach at Maximum Height: 23.0 in
- Maximum Dump Angle: 46 degrees
- Reach w/ Bucket on Ground: 73.1 in
- Maximum Rollback Angle: 43 degrees
- Digging Depth Below Grade: 10.5 in
- Overall Height in Carry Position: 52.5 in
- Bucket Depth (Inner Shell): 21.6 in
- Bucket Height: 22.6 in
- Bucket Length (Pivot Pin): 29.2 in
- Lift Capacity to Full Height at Pivot Pins: 2,474 lbs
- Bucket Rollback Force at Ground Line: 3,148 lbs
- Breakout Force at Pivot Pins: 3,895 lbs
- Relief Valve Setting: 2,273 psi
- Rated Flow: 4.2 gpm
- Bucket Size: 72 in
- Bucket Capacity (Heaped): 15.5 cu ft
- Approximate Weight (w/ Bucket): 1,085 lbs
Attachments
Loader
Yes
Loader Make
KIOTI
Loader Model
KL5521QA72
Powertrain
Engine Horsepower
44.9 HP
Drive
MFWD
Transmission Type
Hydro
# of Forward Speeds
0-18.45
# of Reverse Speeds
0-12.92
Max Travel Speed
18.45 mph
Rear PTO
Yes
Rear PTO Speed
540
Engine
Engine Manufacturer
DAEDONG
Weights & Dimensions
Height
96.8 in
Length
125.5 in
Weight
3,523 lb
Width
62.8 inGeneral
Year
2023
Manufacturer
KIOTI
Model
DK4720SEH
Serial Number
PA4SA0340
Condition
New
Stock Number
AES2306K
Hours
0
Warranty
Yes
Warranty Type
Original
